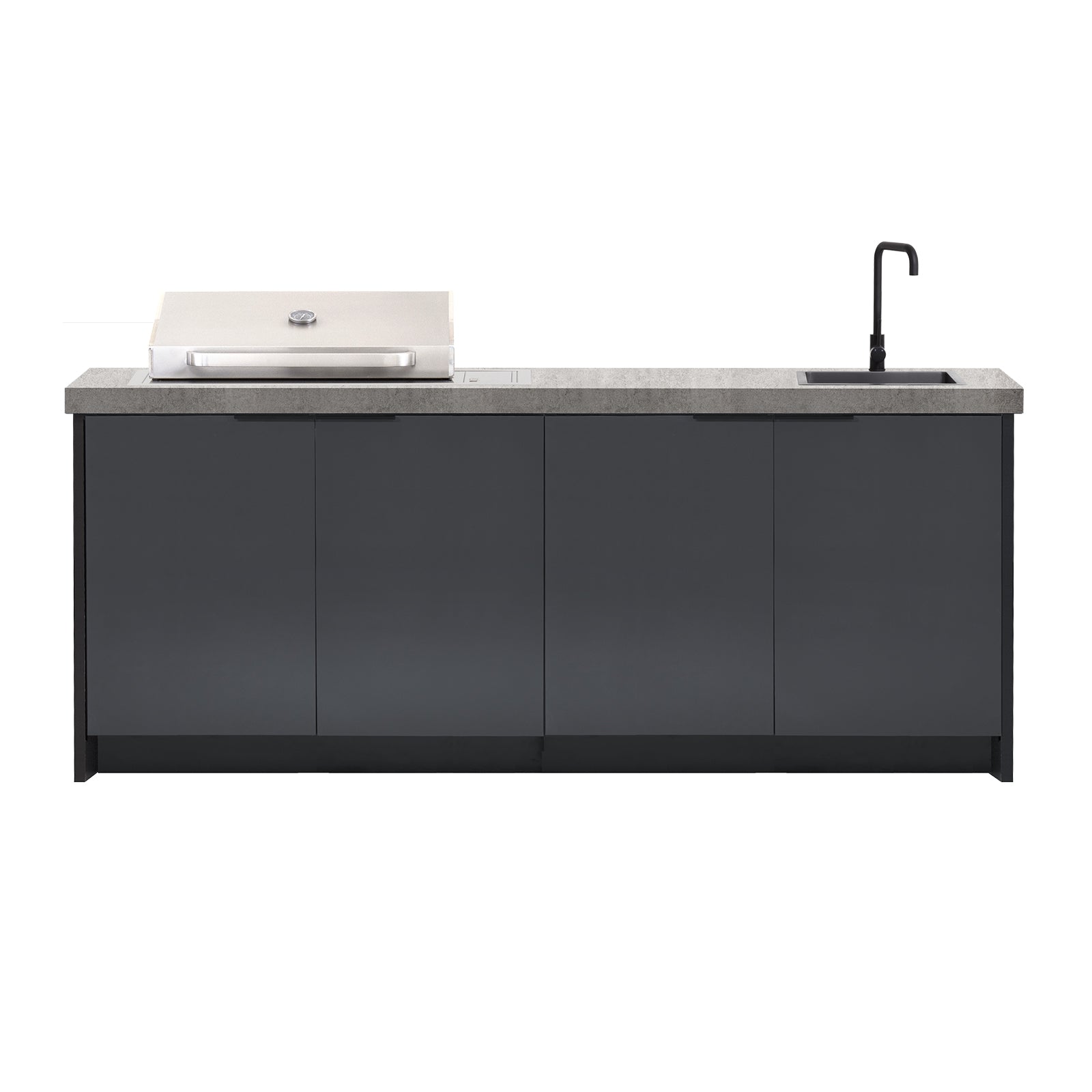

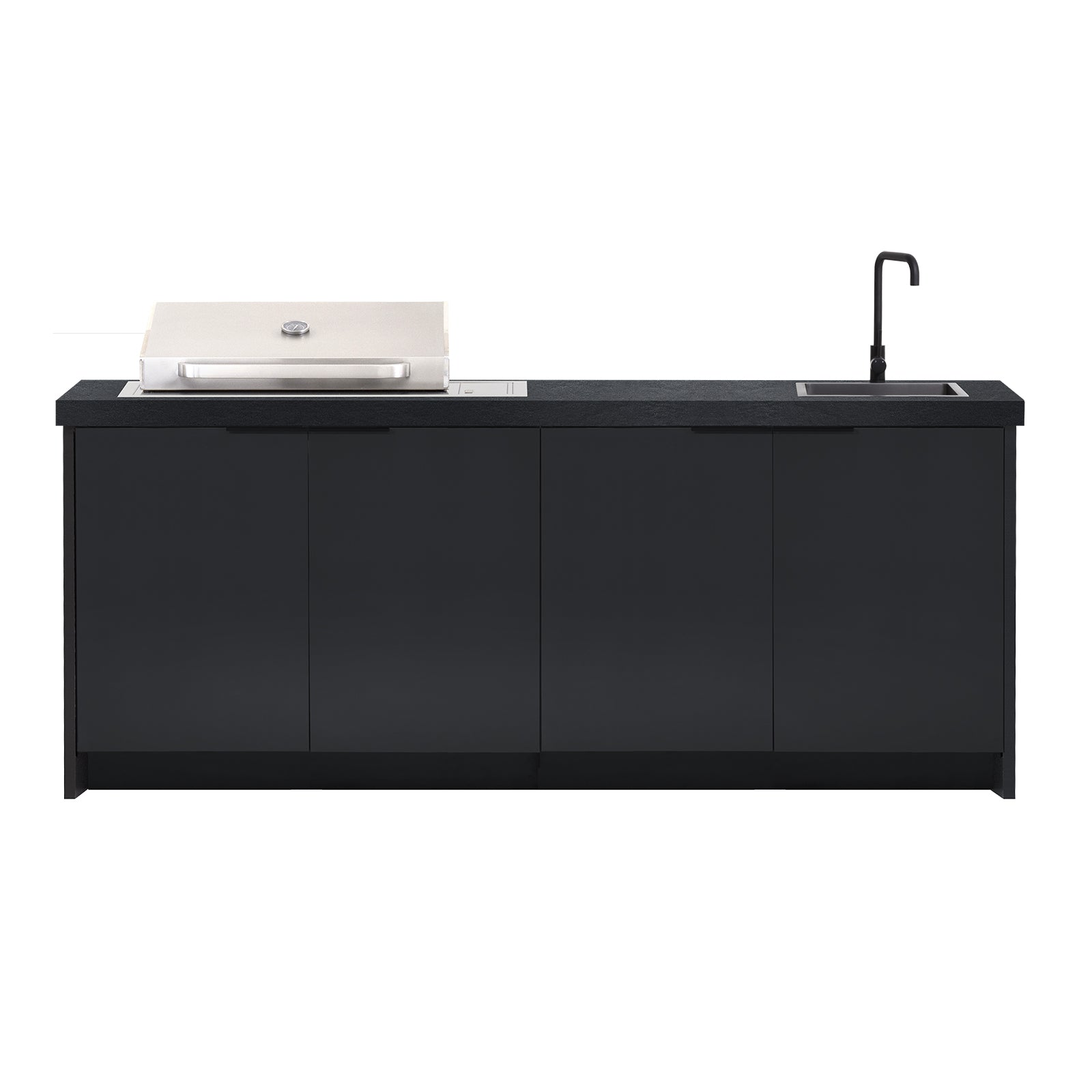

Cabinex Minimal Outdoor Kitchen with Gasmate Soho BBQ with Roasting Hood

Sleek and sophisticated; the Cabinex Minimal Outdoor Kitchen is raring to be the centre point of your alfresco space. The Gasmate Soho BBQ utilizes a flush mount design to extend your benchtop with the flat lid closed. Including an additional roasting hood that can be attached in place of the lid for versatile cooking options, this stylish kitchen is eye-catching and functional.

Featuring the Gasmate Soho 4 Burner Drop In BBQ, with the option of a roasting hood or flush mount flat lid, this weatherproof outdoor kitchen is suitable for any alfresco space. Complete with a sink and tap and your choice of additional storage or single-door fridge, the Cabinex Minimal Kitchen caters to all kinds of areas.

Constructed from completely waterproof Weathertek Cabinetry and Porcelain, available in a range of different colours, this custom outdoor kitchen is ready to be installed anywhere.

*Installation available for Melbourne Metro, Mornington and Bellarine Peninsulas, as well as Brisbane Metro, Sunshine Coast and Gold Coast at an additional cost.

Features

• High quality, weatherproof cabinetry and benchtop
• Stylish Porcelain Benchtop with shadow-line waterfall ends
• Adjustable feet to allow for kitchen to be level
• Ample storage space
• Designed to be placed directly up against a wall
• Available in multiple colours*
• Layout is reversible - sink at left end, bbq to the right side

  *Additional colour combinations are available upon request eg Black benchtop with White doors.

Specifications

Cabinetry Dimensions (LxDmm): 2385 x 730mm
Benchtop Height (approx.): >940mm (adjustable)
Benchtop Edgework: 60mm
Rear Cavity Depth (For Services): 120mm
Fridge Size (if applicable): 97L
Door Finish: Matte
BBQ Finish: 304-Grade Stainless Steel

Materials-
Frame: Cabinex Powder Coated Aluminium Frame
Carcass: WeatherTek PVC
Doors: WeatherTek Compact Laminate
Benchtop: Porcelain

Appliances (if applicable)-
BBQ: Gasmate Soho 4 Burner Drop In BBQ
BBQ SKU: BQ1096
Hood SKU: BQ1096H
Overall BBQ Dimensions (LxDxHmm): 930 x 610 x 495mm
Burners: 4x stainless steel burners
Total Cooking Area (LxDmm): 665 x 420mm
Total 54MJ/h (4 x 13.5MJ/h)
Hotplate: 1x Reversible Cast Iron Hotplate and Griddle
Grills: 1x Stainless Steel Grill
Body Finish: 304-Grade Stainless Steel

Fridge: Gasmate Premium 1-Door 97L Glass Door Bar Fridge with Black Interior
SKU: BFR1088
Dimensions (LxDxHmm): 500 x 550 x 840mm
Capacity: 97L
External Body Finish: Brushed Stainless Steel
Internal Body Finish: Black anti-bacterial finish
Door: Triple glazed heated glass door (lockable)
Energy Consumption: 2.4kw.h/24h
Noise Level: 45db(A)
IP Rating: IP24
Rated Voltage: 220-240V AC
Net Weight: 38kg

Assembly Required
Cabinetry: Sent as flatpack - Full assembly required
Holesaw Required
*Assembly available for Melbourne Metro zones for an additional price upon request

Warranty

Cabinetry: Limited 15 Year Warranty
BBQ: Limited 5 Year Gasmate Warranty
Fridge (If Applicable): Limited 5 Year Gasmate Warranty
