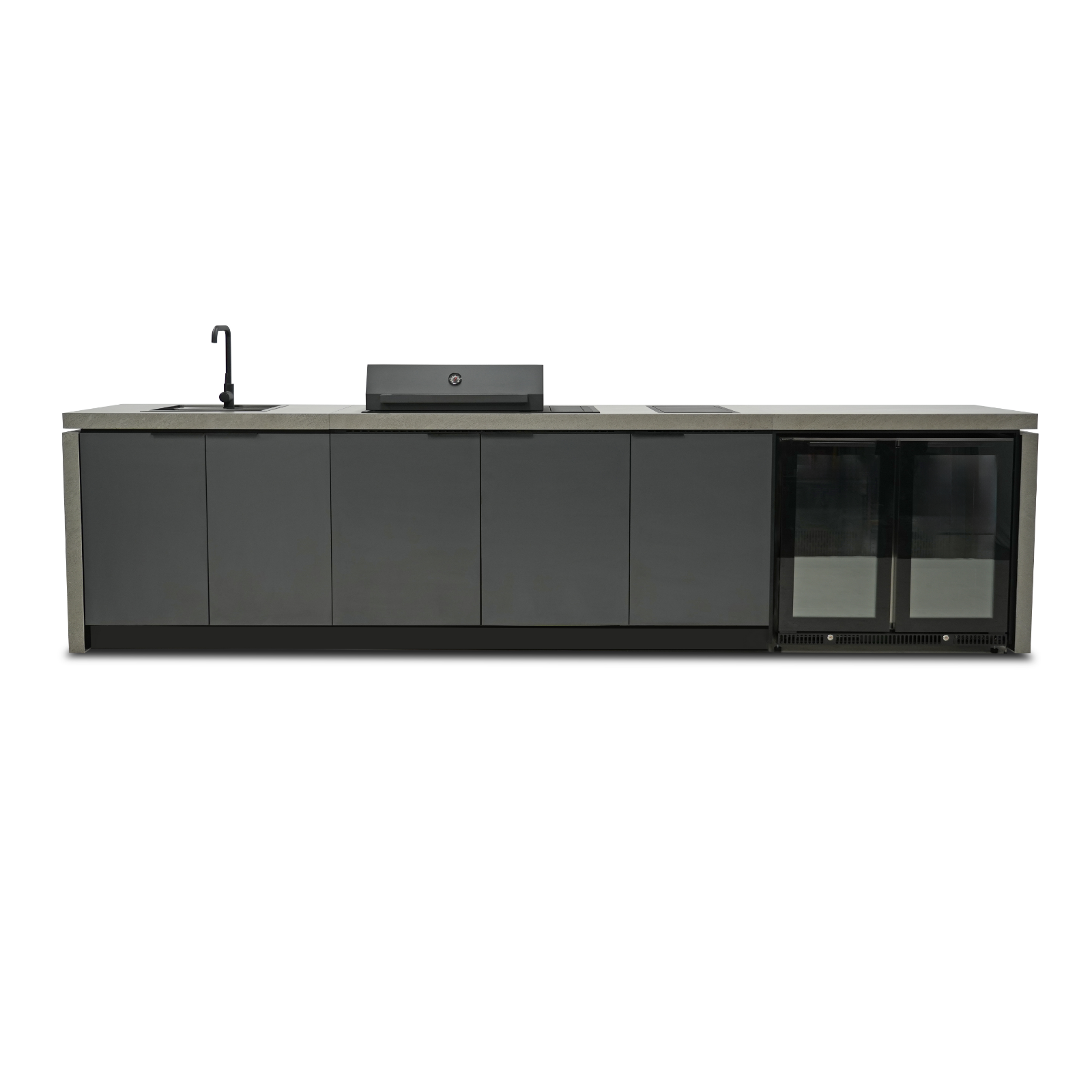

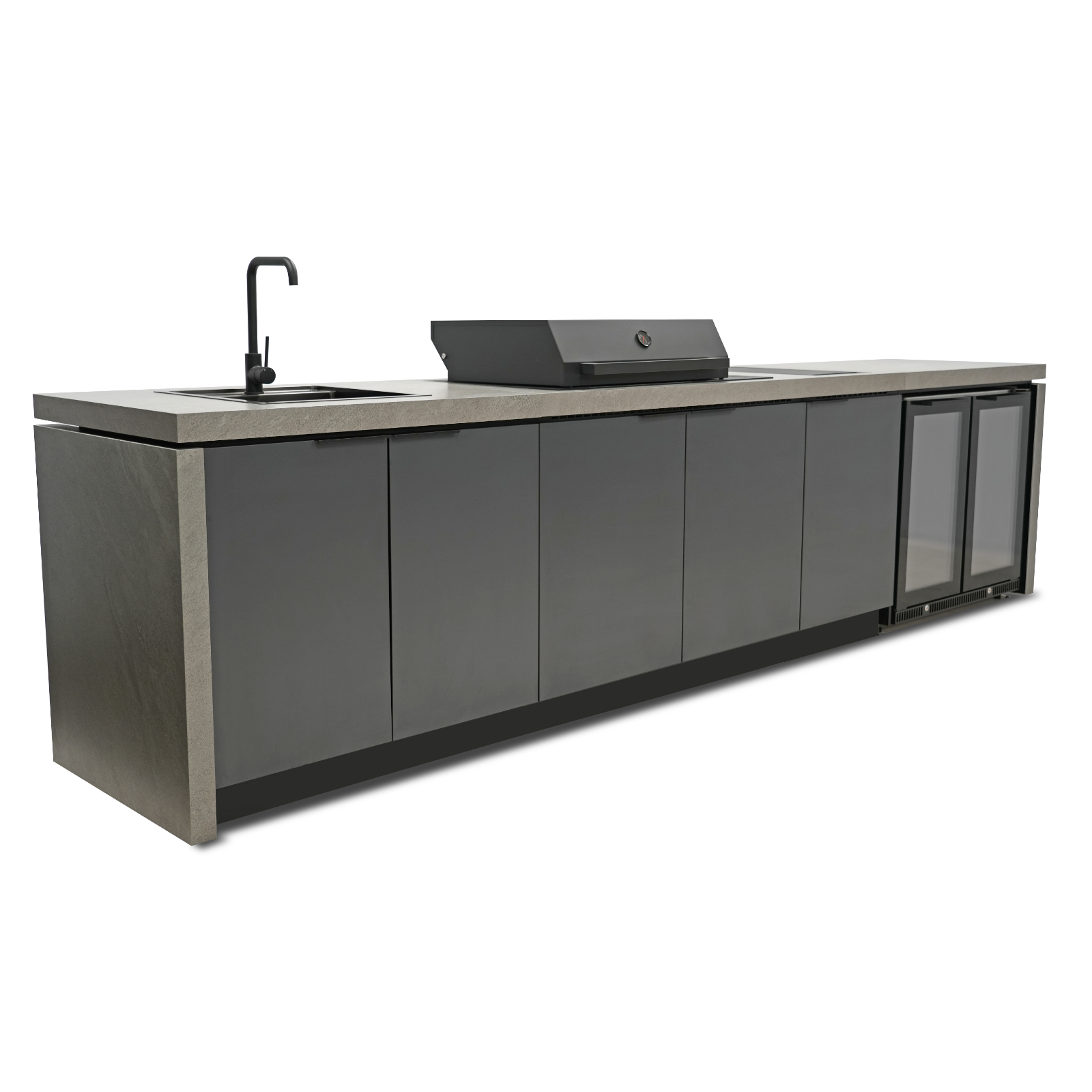

Cabinex Phoenix 4-Burner BBQ with Roasting Hood and Side Burner Kitchen Package - Large Size

Sleek and sophisticated; this Cabinex Outdoor Kitchen is raring to be the centre point of your alfresco space. With a contemporary, slimline design perfectly integrating the Gasmate Phoenix BBQ, this eye-catching outdoor kitchen is designed to impress.

Featuring the Gasmate Phoenix Drop-in 4-Burner BBQ with Roasting Hood and matching sideburner, this weatherproof outdoor kitchen is suitable for any alfresco space. Complete with a sink and tap and your choice of additional storage or single-door fridge, the Cabinex Minimal Kitchen caters to all kinds of areas.

Constructed from completely waterproof Weathertek Cabinetry and Porcelain, available in a range of different colours, this custom outdoor kitchen is ready to make a statement.

Please note, the porcelain benchtop is constructed in sectional pieces and incorporates butt joins where the sections meet. These joins are illustrated in the photographs.

Professional Installation available in Melbourne Metro, Mornington and Bellarine Peninsulas, Brisbane Metro, Sunshine Coast and Gold Coast at an additional fee.

**Flat-pack or self-install Cabinex kitchens are designed to be installed on level surfaces and do not accommodate significant falls in the ground level from left to right. Before installation, check the area to ensure it is relatively level. If the floor or surface falls away by more than 20–30mm, it may result in visible gaps—particularly in the shadow line or at the base of waterfall ends.

Features

• High quality, weatherproof cabinetry and benchtop

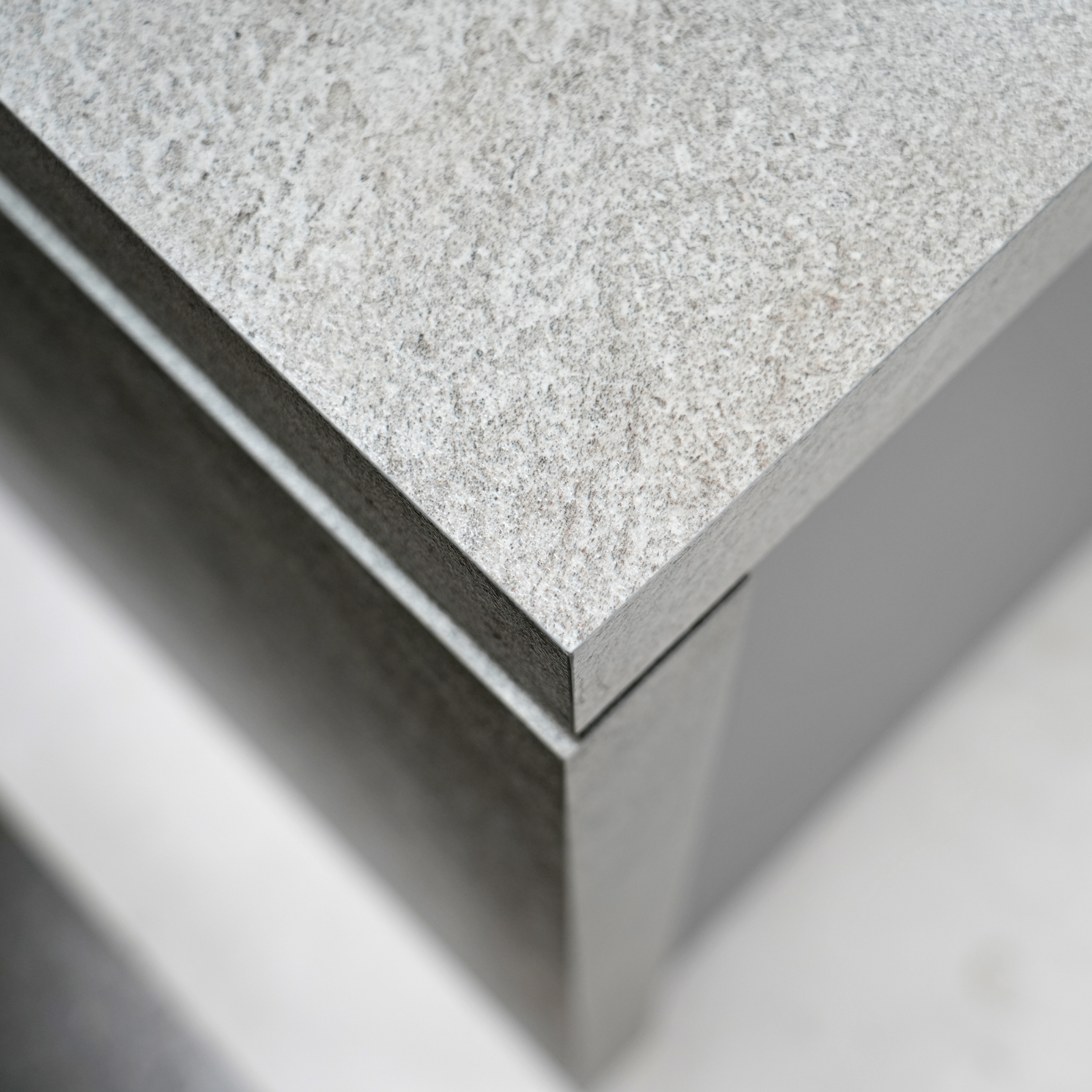

• Stylish 3-Piece Porcelain Benchtop with shadow-line waterfall ends

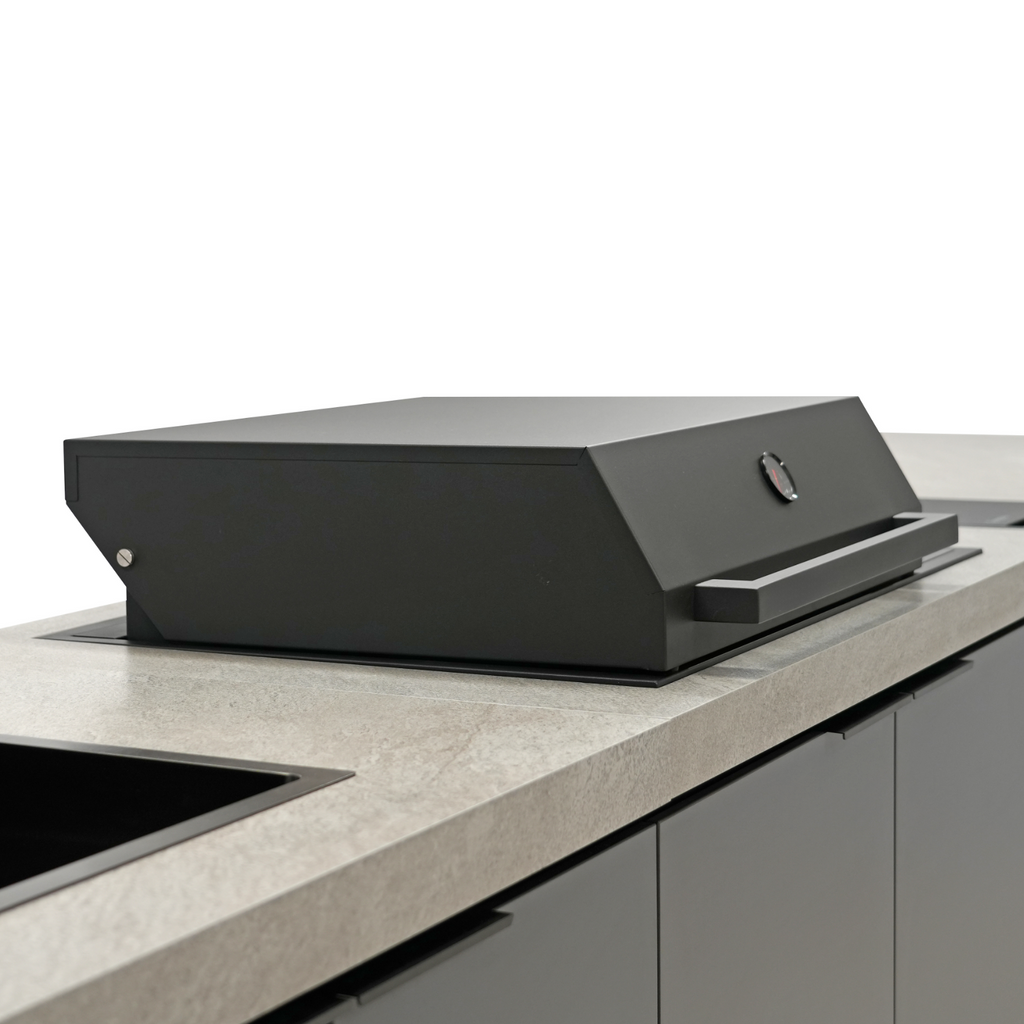

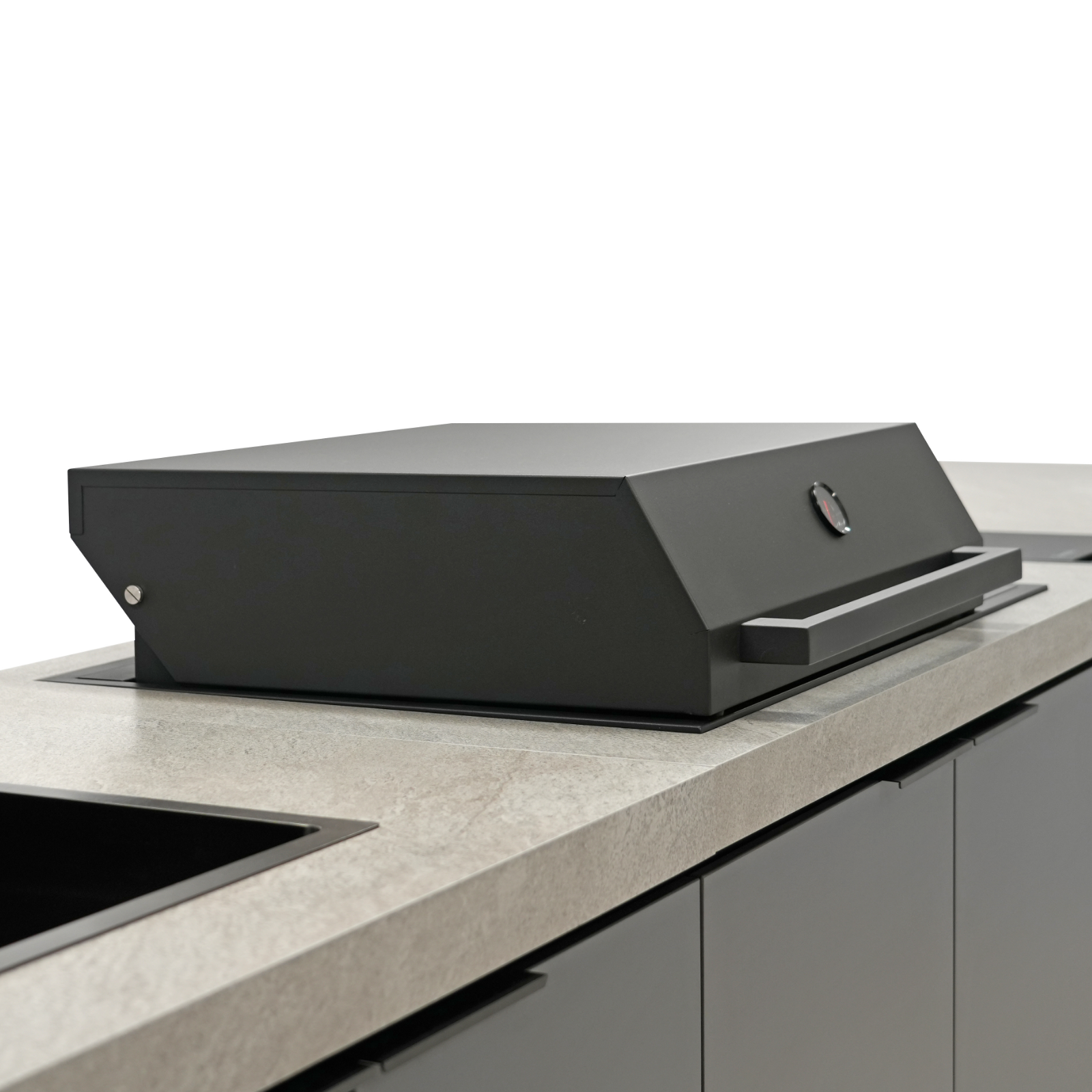

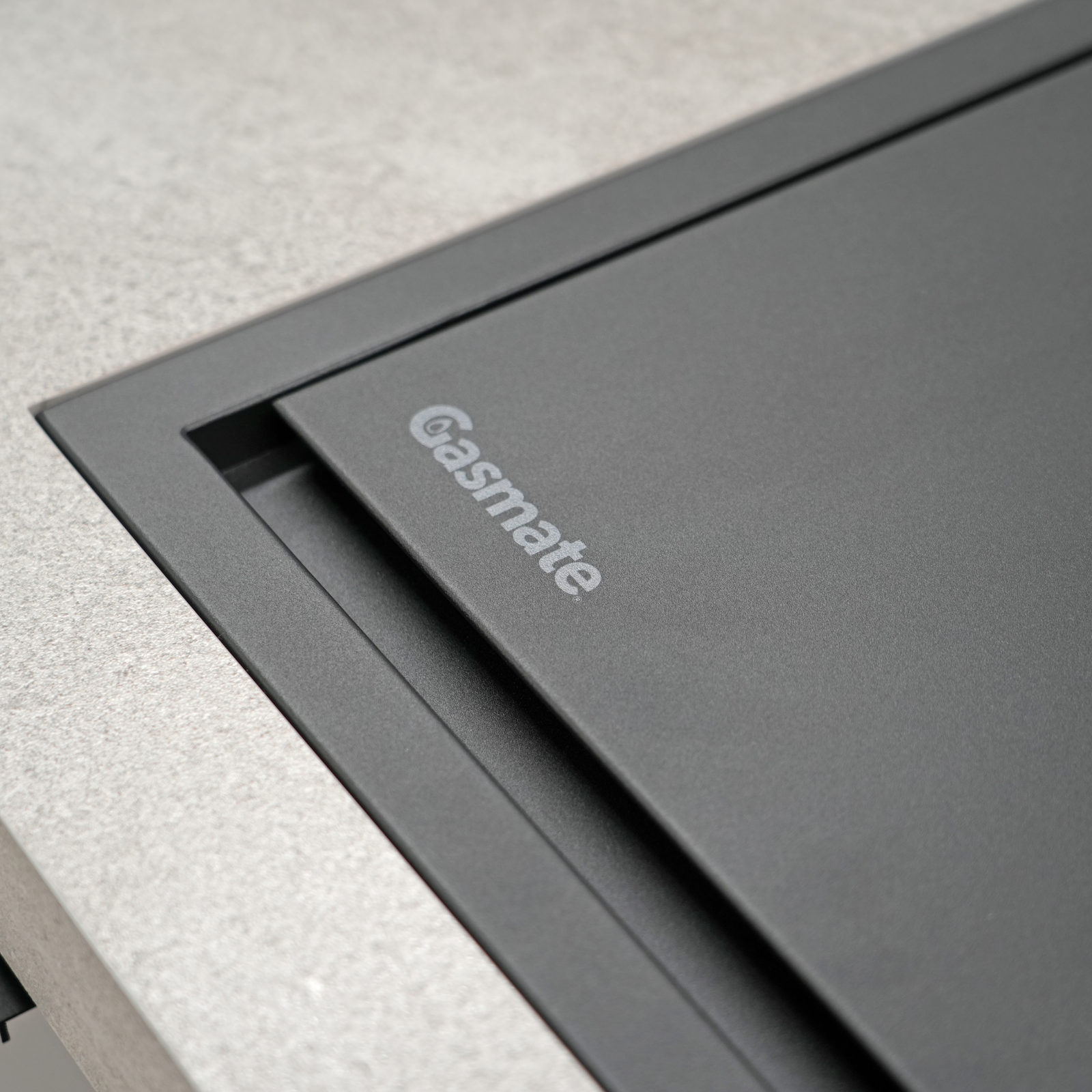

• Slimline drop-in BBQ with flame failure device for added safety
• Slimline drop-in flush-mount sideburner / wok burner for versatile cooking options
• Adjustable feet to allow for kitchen to be level
• Large setup with ample storage space
• Designed to be placed directly up against a wall

• Layout is reversible (ie. fridge to left side, sink to the right side)



Specifications

Cabinetry Dimensions (LxDmm): 3755 x 730mm
Benchtop Height (approx.): >940mm (adjustable)
Benchtop Edgework: 60mm
Rear Cavity Depth (For Services): 30mm
Fridge Size (if applicable): 187L
Door Finish: Matte
BBQ Finish: Matte Black Powdercoated Stainless Steel
Tap SKU: AQ56B16CB

Materials-
Frame: Cabinex Anodized Aluminium Frame
Carcass: WeatherTek PVC
Doors: WeatherTek Compact Laminate
Benchtop: Porcelain

Appliances-
BBQ: Gasmate Phoenix Black 4 Burner Drop-In BBQ with Roasting Hood
Propane BBQ SKU: BQ2047BLHDKIT
Natural Gas BBQ SKU: BQ2047BLNGKIT
Overall BBQ Dimensions (LxD): 933 x 610mm
Roasting Hood Height (closed): 183mm
Gas connection set up: Propane or Natural Gas
Burners: 4 x Stainless Steel
Burner Power: 54MJ/h
Finish: Matte Black Powdercoated Stainless Steel
Flame Failure Device: Included

Sideburner: Gasmate Phoenix Drop-In Side Burner
Propane SKU: BQ2027BL
Natural Gas SKU: BQ2027BLNG
Overall Dimensions (LxDxHmm): 321 x 609 x 200mm
Total Gas Output (Propane): 23MJ/h
Total Gas Output (Natural Gas): 21MJ/h
BTU Rate (Propane): 21800
BTU Rate (Nautral Gas): 19904
Ignition: Electronic (Battery Operated)

Fridge (if applicable): Gasmate Premium 2-Door 187L Glass Door Bar Fridge with Black Interior
SKU: BFR2088
Dimensions (LxDxHmm): 900 x 550 x 840mm
Capacity: 187L
External Body Finish: Brushed Stainless Steel
Internal Body Finish: Black anti-bacterial finish
Door: Triple glazed heated glass doors (lockable)
Energy Consumption: 4.1kw.h/24h
Noise Level: 45db(A)
IP Rating: IP24
Rated Voltage: 220-240V AC
Net Weight: 65kg

Assembly Required
Cabinetry: Sent as flatpack - Full assembly required
Holesaw Required
*Assembly available for Melbourne Metro zones for an additional price upon request

Warranty

Cabinetry: Limited 10 Year Warranty
BBQ: Limited 5 Year Gasmate Warranty
Fridge (If Applicable): Limited 5 Year Gasmate Warranty

Additional Resources

BBQ Manual
Hood Manual
Sideburner Manual
Fridge Manual
Stainless Steel Care Guide
Natural Gas BBQ Info Sheet
